800G OSFP DR8 OPTICAL TRANSCEIVERS: MEETING THE DATA CENTER BANDWIDTH SURGE

Explore how 800G OSFP DR8 optical transceivers are revolutionizing data center performance. Learn about their technical advantages, real-world applications,.

LOS ANGELES, CA, UNITED STATES, June 26, 2025 /EINPresswire.com/ -- In today’s digital landscape, data center traffic is exploding—driven by artificial intelligence (AI), machine learning (ML), cloud services, and big data. With annual network traffic growth averaging 50–60%, data center operators are pushing beyond 400G Ethernet links to meet demand. Among the latest innovations enabling this transformation is the 800G OSFP DR8 optical transceiver.

This cutting-edge transceiver offers not just greater bandwidth, but also improved thermal design and deployment flexibility—making it a key enabler for high-performance networks.

What Is an 800G OSFP DR8 Optical Transceiver?

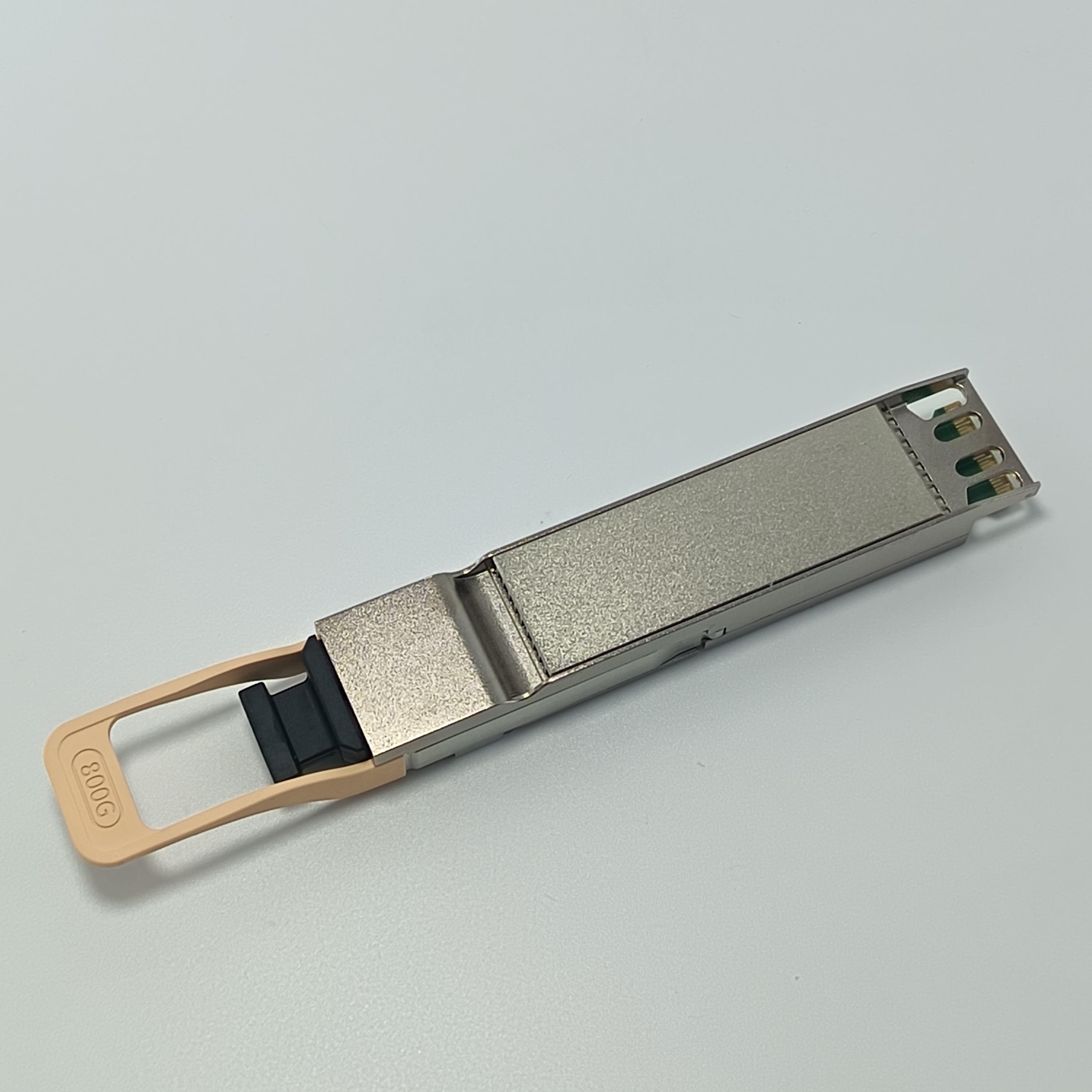

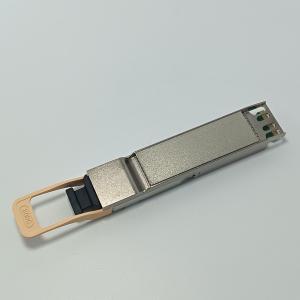

The 800G OSFP DR8 transceiver is an 800 Gigabit per second optical module designed to transmit data over single-mode fiber (SMF) up to distances of 500 meters. It uses eight lanes of 100G PAM4 signaling, hence the "DR8" (Data Center Reach, 8 lanes) designation. Each lane transmits 106.25 Gbps using PAM4 modulation at a wavelength of 1310 nm.

Key Technical Features:

Form Factor: OSFP (Octal Small Form Factor Pluggable) – larger than QSFP-DD, with integrated heatsinks.

Bandwidth: 800 Gbps aggregate throughput (8 × 100G).

Reach: Up to 500 meters over SMF using MPO-12 or MPO-16 connectors.

Modulation: PAM4 at 106.25 Gbaud per lane.

Power Consumption: Up to ~15W, made possible by the OSFP’s larger thermal envelope.

Compatibility: Hot-pluggable and compliant with IEEE 802.3ck/802.3df and OSFP MSA standards.

This form factor supports higher bandwidth per port while also addressing heat dissipation—an increasingly critical concern as speeds scale up.

Advantages in Performance and Scalability
1. Doubling Bandwidth Without Doubling Infrastructure
800G OSFP DR8 modules double the bandwidth of 400G optics without increasing switch size or cable density. For example, a 1U switch with 36 OSFP ports can support a total of 14.4 Tbps, making it ideal for spine and core network architectures.

2. Thermal Efficiency
Thanks to its built-in heatsink, OSFP can handle higher power consumption—up to 15W per module. This is especially useful in environments with advanced DSPs and silicon photonics, where thermal design is a limiting factor.

3. Flexible Network Design
800G OSFP DR8 ports support breakout configurations. A single port can be split into:

2 × 400G

4 × 200G

8 × 100G
This flexibility enables network architects to design scalable topologies with fewer transceivers and cables.

Why It Matters: Practical Applications in Data Centers
Hyperscale Cloud Networks
Major cloud providers like Amazon, Microsoft, and Google are embracing 800G to scale their networks. These operators use OSFP DR8 transceivers in spine-leaf architectures to move massive amounts of data between server clusters with minimal latency and maximum throughput.

AI/ML and GPU Clusters
AI workloads generate dense east-west traffic. As such, 800G is becoming a standard for high-bandwidth GPU interconnects. OSFP DR8 modules enable fast data exchange between compute nodes, making distributed training and inferencing more efficient.

Enterprise Core and Campus Backbones
Enterprises running data-heavy operations—like finance, media, or e-commerce—use 800G transceivers in their core routers and aggregation layers. One 800G link can replace eight 100G links, reducing infrastructure complexity while increasing capacity.

Edge Data Centers and 5G Aggregation
At the edge, 800G is suitable for short-haul connections between radio access network (RAN) equipment and aggregation routers. It supports growing bandwidth demands from 5G, video streaming, and real-time applications.

Market Adoption and Industry Trends
AI Acceleration Is Driving Demand
The explosion of AI/ML workloads is the top driver of 800G adoption. As enterprises invest in massive AI clusters, their infrastructure must support huge volumes of data between nodes—something 800G DR8 optics handle efficiently.

Transition from 400G to 800G
With 400G optics now standard in many deployments, 800G represents the next evolution. Forward-thinking data centers are upgrading directly to 800G to future-proof their infrastructure and avoid intermediate transitions.

Vendor Ecosystem Maturity
The ecosystem for 800G OSFP DR8 is mature and growing. Major switch vendors, optical component manufacturers, and chipset designers are actively supporting the OSFP form factor. Products are in volume production, which helps lower costs and ensure interoperability.

Use Cases: Where 800G OSFP DR8 Is Making an Impact
Cloud Service Providers: Interconnecting racks at 800G allows hyperscalers to move more data with fewer physical connections.

AI-Optimized Infrastructure: Accelerating data transfer across GPU servers in training and inference clusters.

Financial Networks: Delivering ultra-low latency at high bandwidth for real-time market data and transactions.

Carrier Edge Networks: Supporting high-speed backhaul in 5G and content delivery networks (CDNs).

Multi-Tenant Data Centers (MTDCs): Providing high-throughput connectivity between tenants and cloud gateways.

Looking Ahead
As bandwidth demands increase, 800G OSFP DR8 optical transceivers offer a practical, scalable, and energy-efficient solution for the most demanding networking environments. Their adoption is not a speculative trend—it is a direct response to real-world needs across cloud, enterprise, and telecom sectors.

With standards in place, production ramping, and infrastructure ready, 800G OSFP DR8 is well-positioned to become the new backbone of modern data centers.
